Bracket 51

Galvanized steel drop wire fixing for secure elevated installations

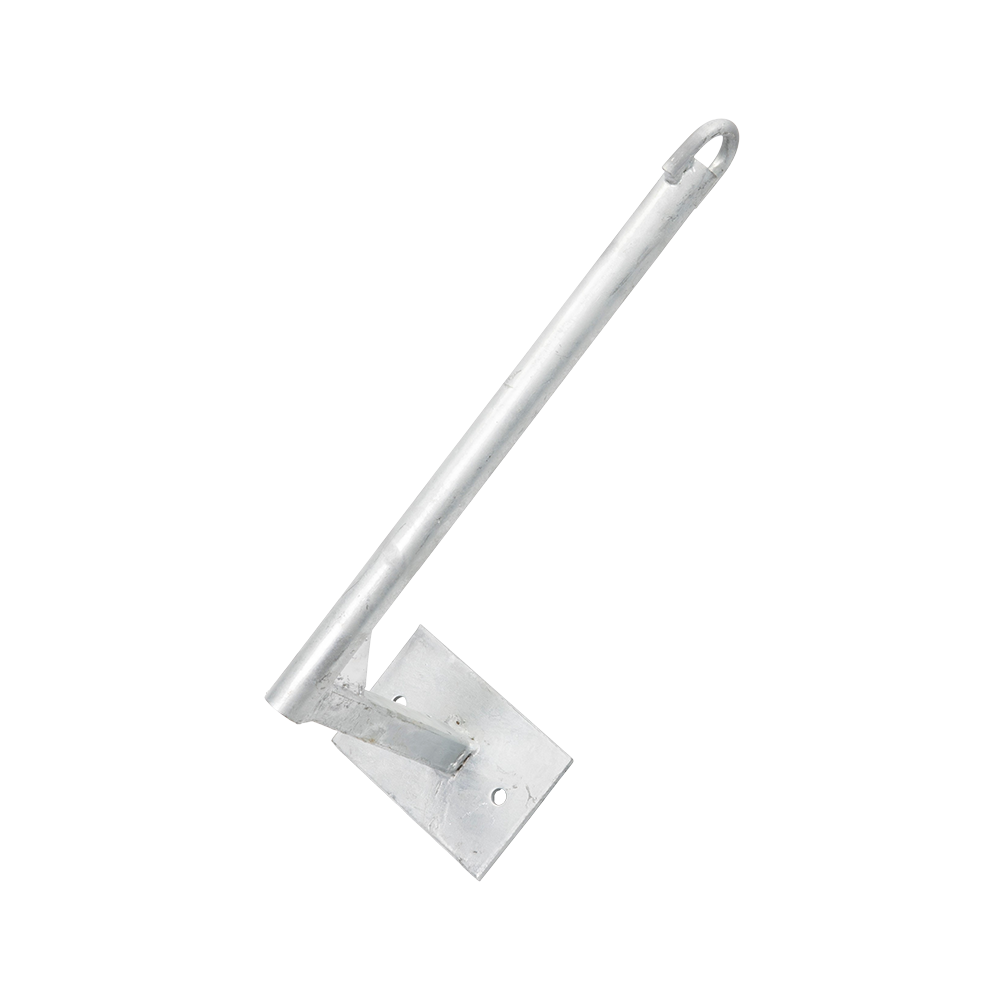

Bracket 51 is a robust galvanized steel drop wire fixing that offers you a secure and efficient way to elevate your equipment to new heights. Crafted with precision and durability in mind, Bracket 51 is designed with a distinctive "L" shape, featuring a welded loop at one end and a plate with two pre-drilled holes at the other.

Bracket 51 is mounted to the wall using the same drilling method as Bracket 44. However, Bracket 51 extends further from the wall and is significantly taller.

This galvanized steel bracket is the perfect choice for attaching a drop wire clamp securely to timber or brickwork at end-user buildings where additional clearance is essential

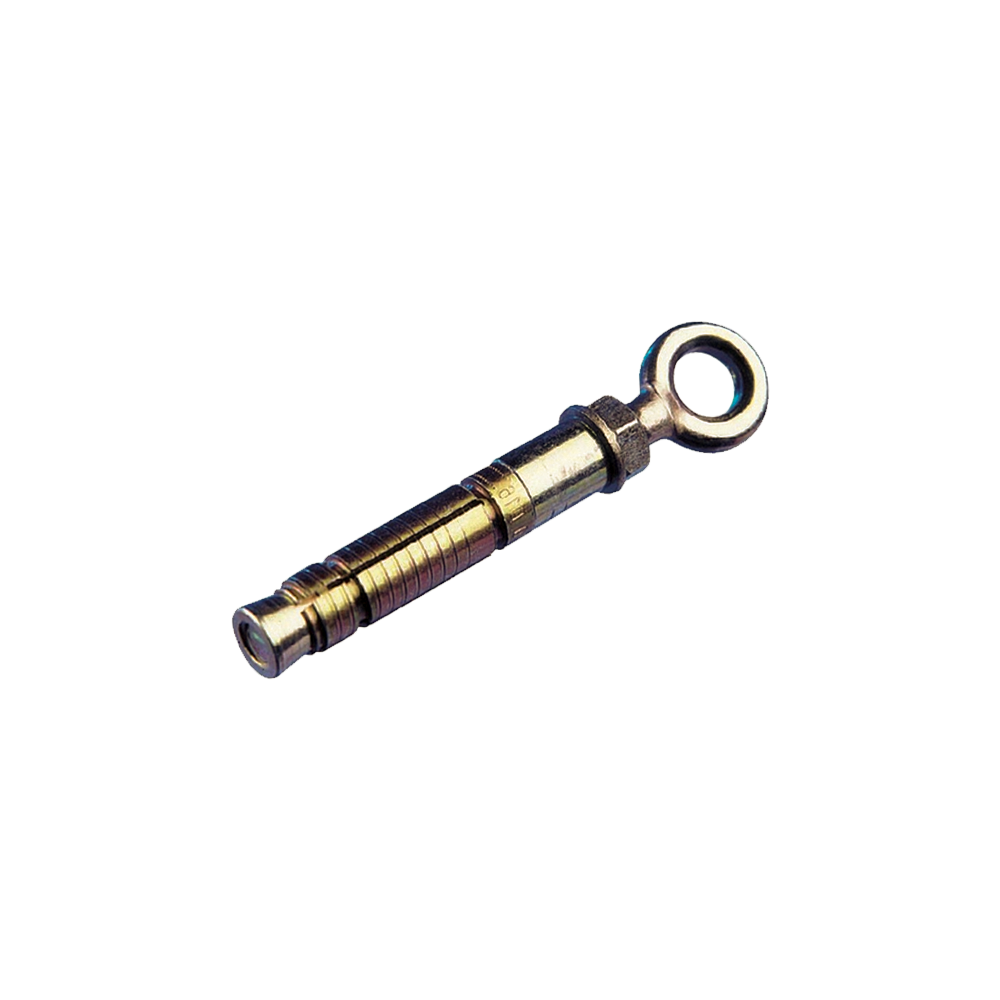

Designed for use with 2 x Eyebolt Expanding 2A for brickwork (without rendering or cladding).

• Galvanized steel construction for long-lasting durability and corrosion resistance.
• Welded loop for secure attachment.
• Pre-drilled holes for easy installation.
• Designed for use with 2 x Eyebolt Expanding 2A for brickwork (without rendering or cladding).


• Dimensions: 600 x 350 mm (Wall Plate: 150 x 100 mm)

•  Maximum span length is 68 metres.
