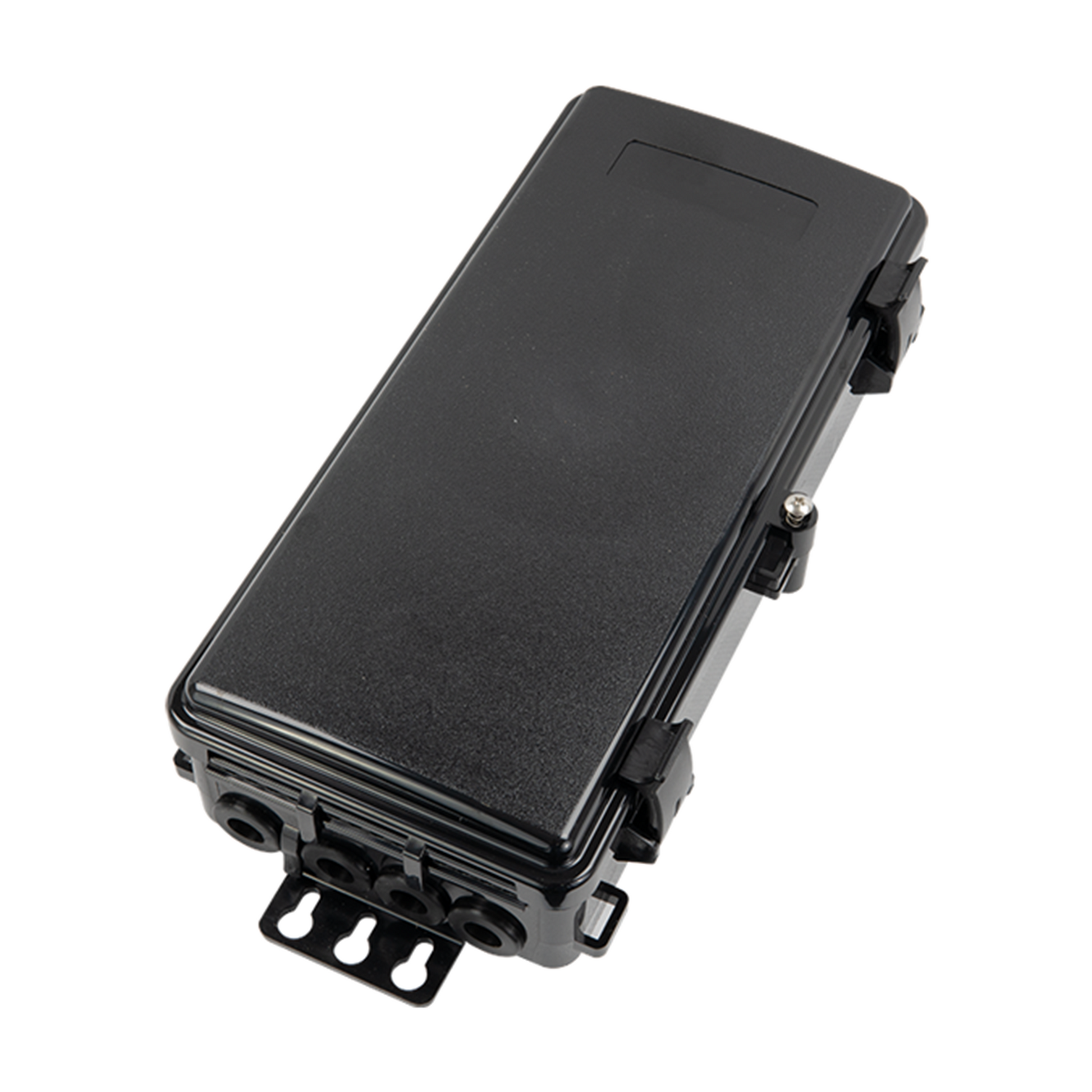

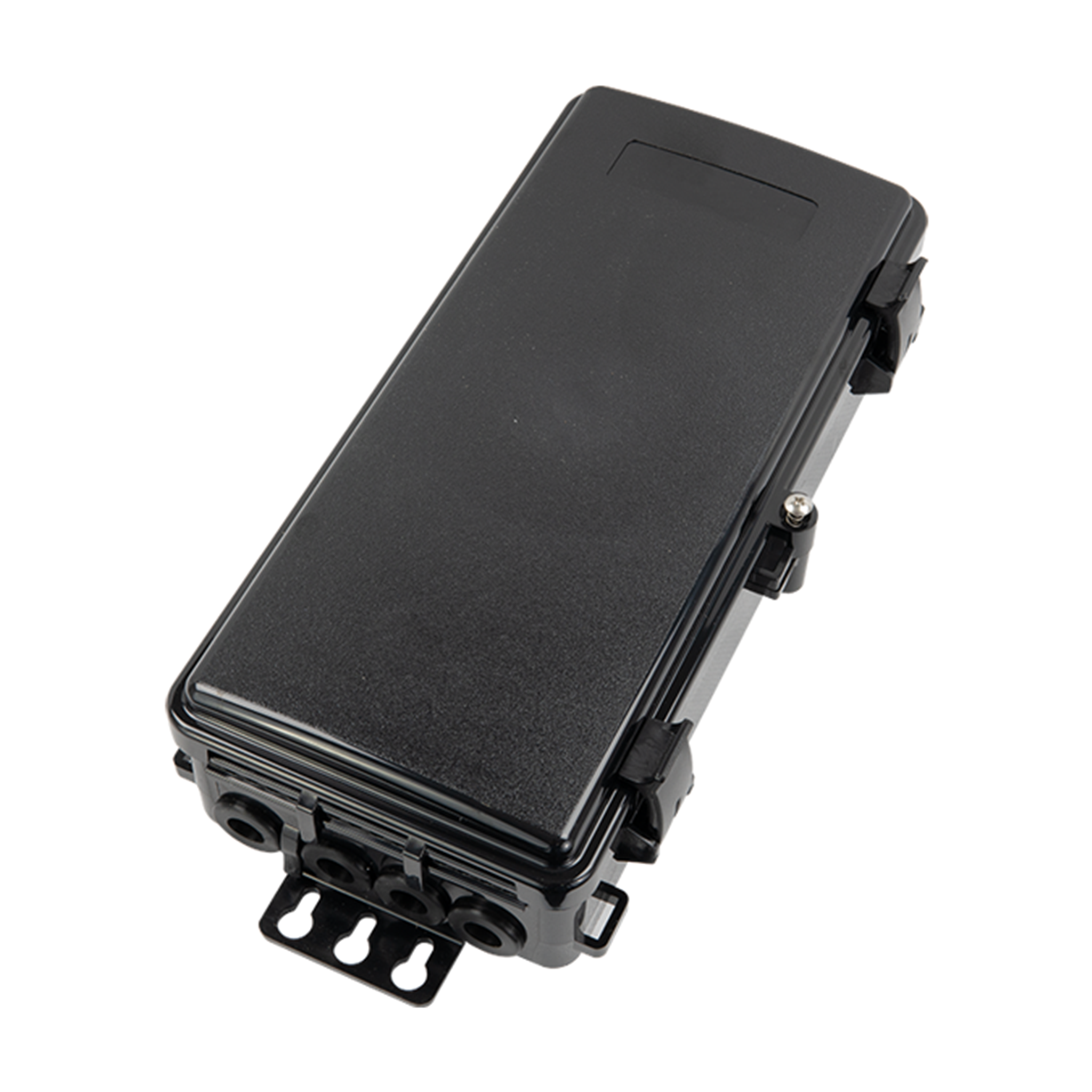

Aerial Subscriber Nodes

A secure and cost-effective solution for installing pre-terminated drop cables, ensuring reliable connectivity while maintaining physical separation between feeder and customer drop cables. Designed for fast deployment, it can be supplied as a standalone splicing unit or as a pre-tailed closure for accelerated rollouts.

Key Features:

Secure & Tamper-Proof Design: Protects optical connections with a robust enclosure and secure cover.

High-Quality Build: Impact-resistant housing, durable sealing clips, and a reliable hinge mechanism ensure long-lasting performance.

Optimised for Fast Deployment: Can be pre-tailed for quicker rollouts, reducing the risk of damage to delicate 250µm fibres.

Scalable Customer Connectivity: Supports up to 32 customer connections with 24 drop cable ports.

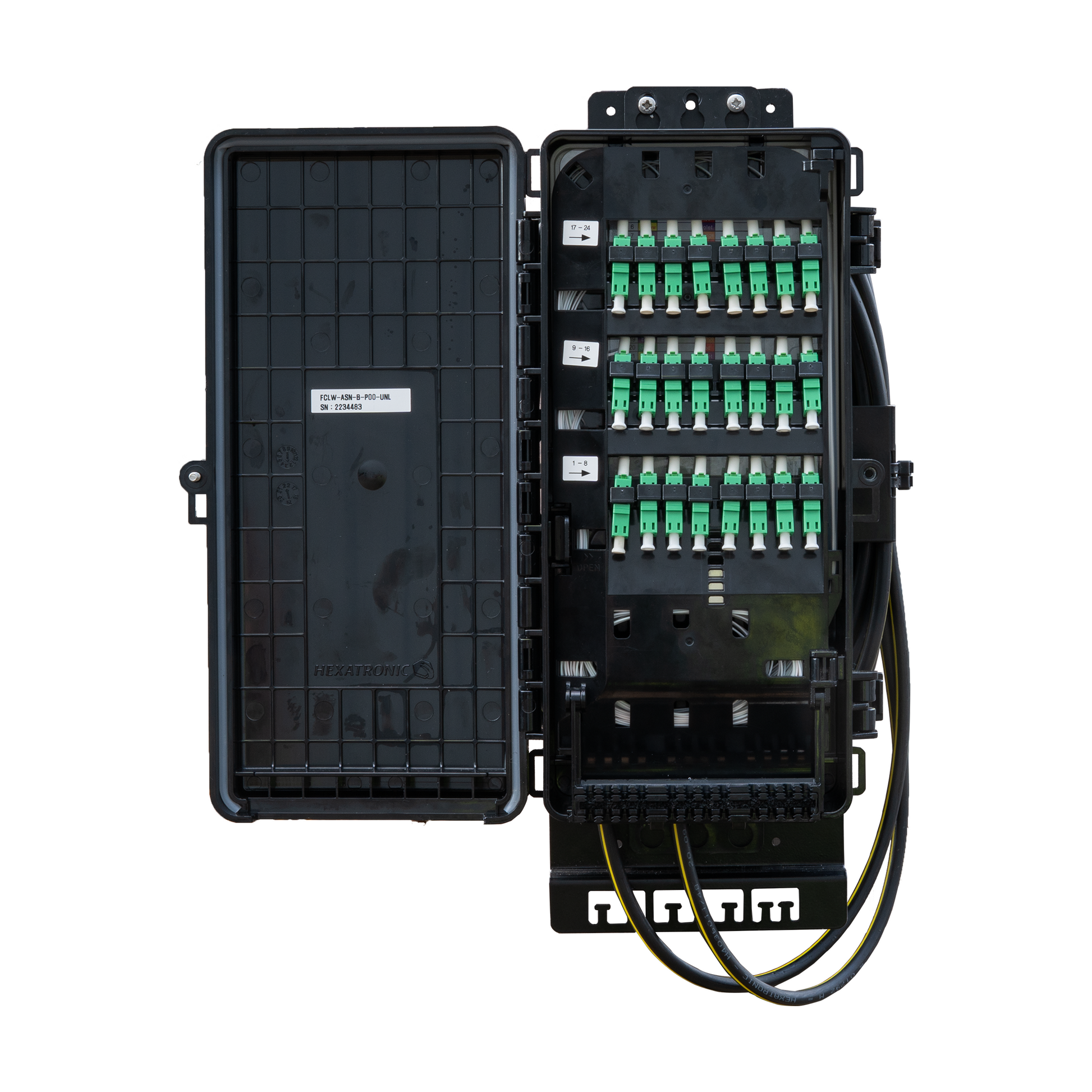

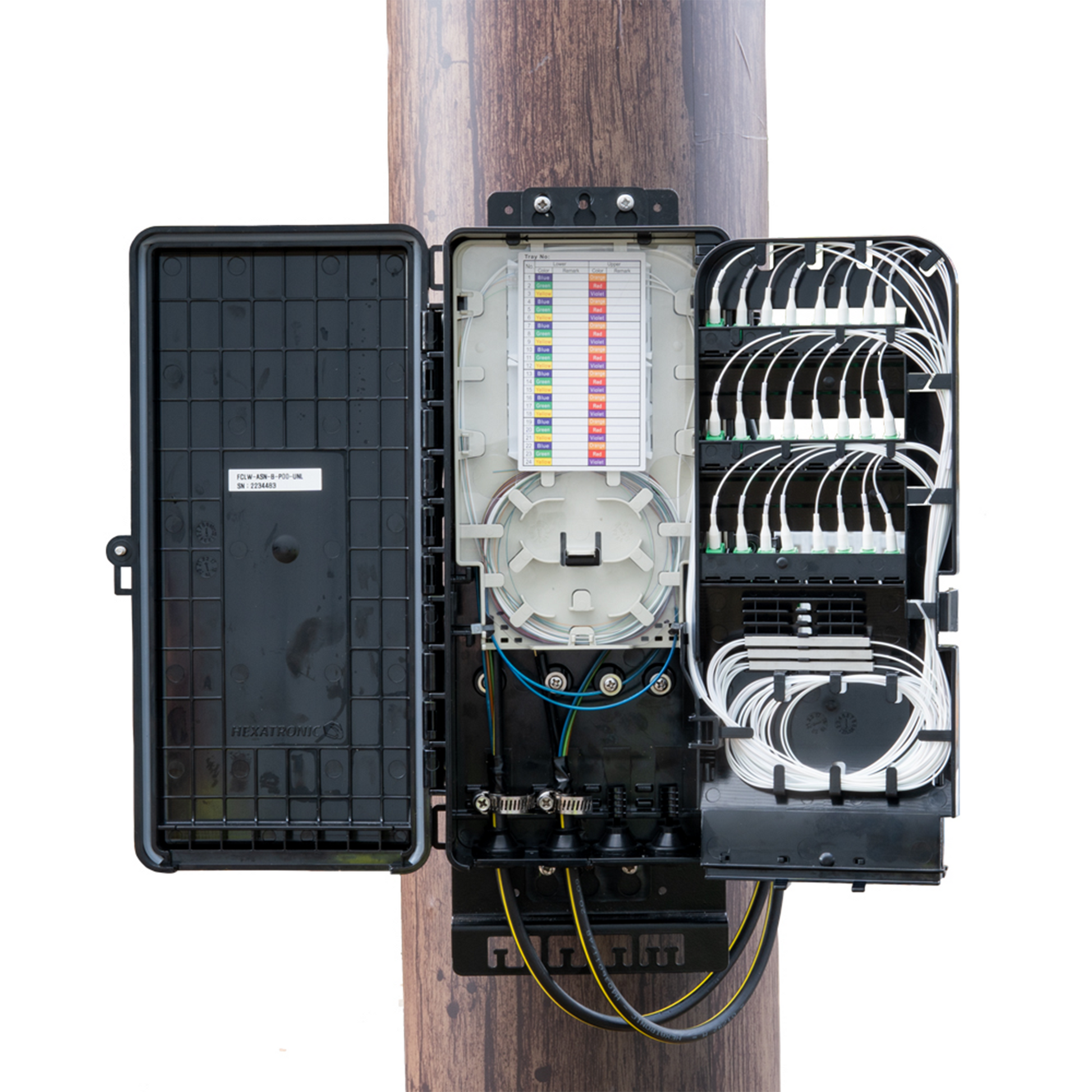

Flexible Cable Management: Features 4 multi-fibre entry ports and physical separation of the splicing area and customer drop connections.

IP55-Rated Protection: Designed to withstand dust, water ingress, and harsh environments.

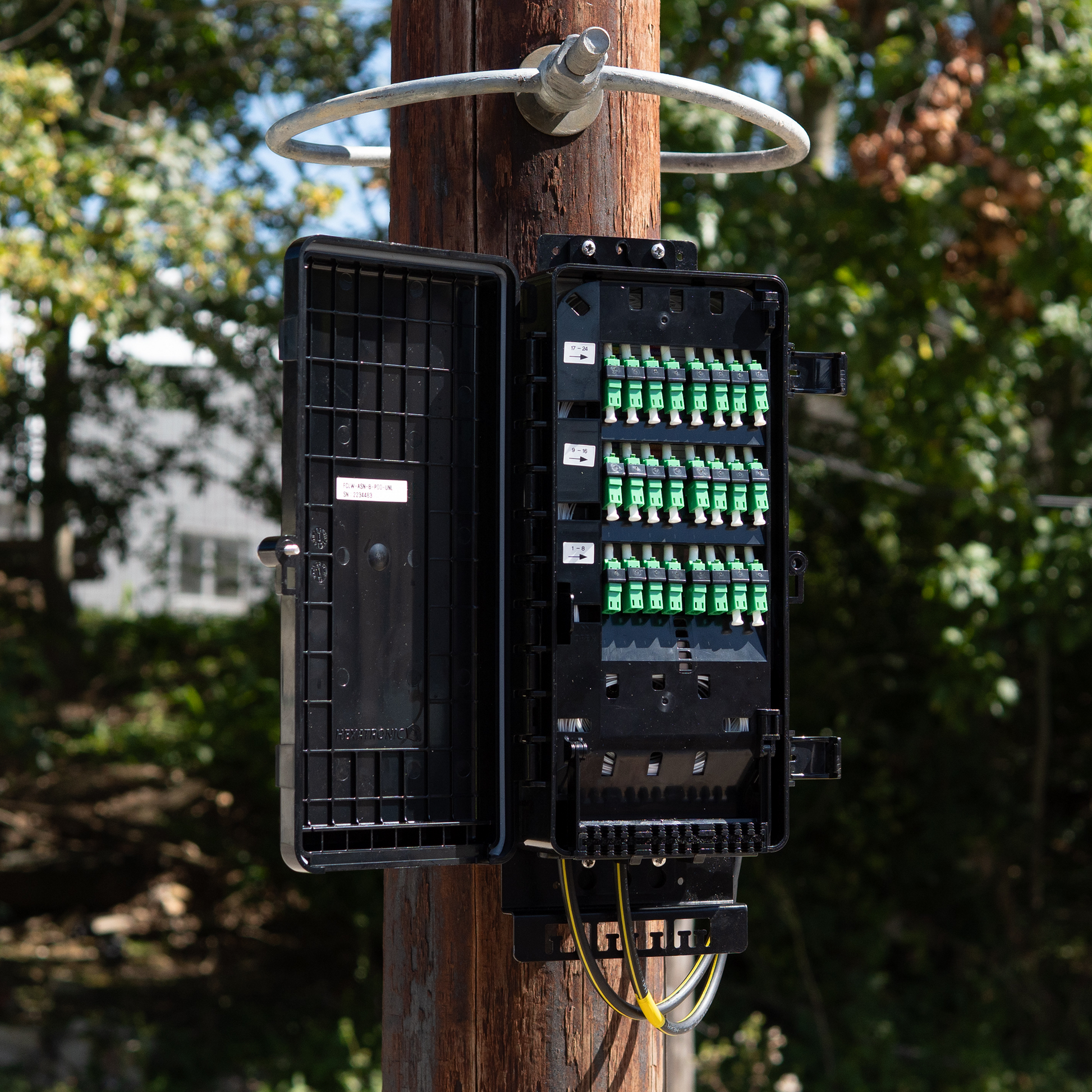

Versatile Mounting Options: Can be wall or wall mounted with the Hexatronic ASN bracket or Dual Bracket.

Compact & Low Profile: Minimises visual impact while allowing efficient cable routing and storage.

Supports 2.4mm Splice Sleeves: Ensure compatibility with industry-standard fibre splicing.

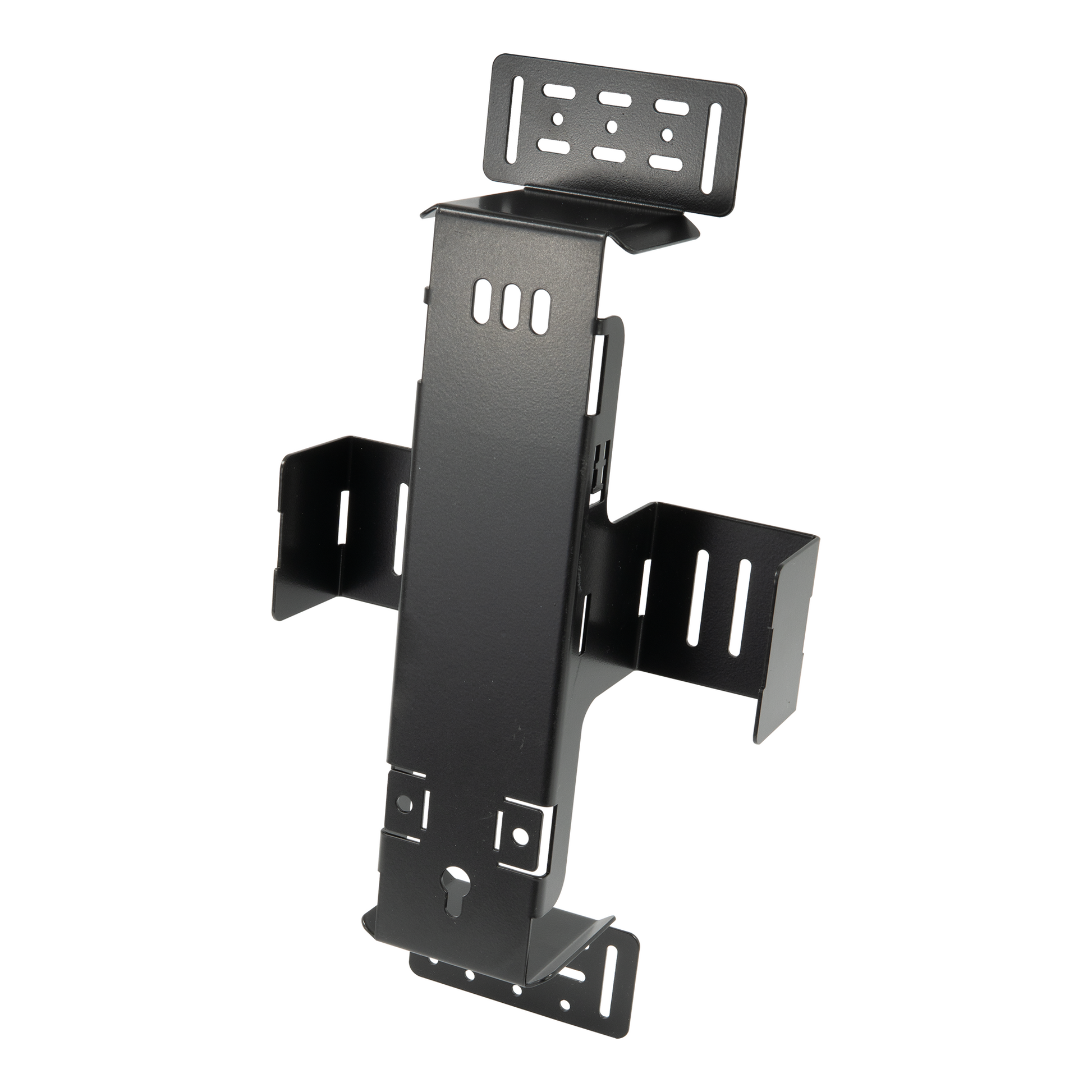

The Hexatronic ASN bracket provides additional cable storage and anchoring, while the Dual Bracket enables back-to-back mounting for increased drop density.
