By Hexatronic UK

Mobra Kits

£14.56 - £59.36
Pricing is exclusive of VAT. Taxes and Shipping calculated at checkout.
£20.90
£20.90
Availability: 100 in stock
Part number: HSBX-MOBRA-BKT-10
Tags:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • Union Pay
  • Visa
£20.90
£20.90
Inline Under Ground Enclosures
Hexatronic UKInline Under Ground Enclosures

Mobra Arm with fixing kit 650mm

  • Universal solution suitable for use in all chambers
  • Robust design
  • Suitable for all chamber styles
  • 15kg load capacity
  • Rust resistant
  • Supplied with mounting screws
Click here for more information and to view the datasheet

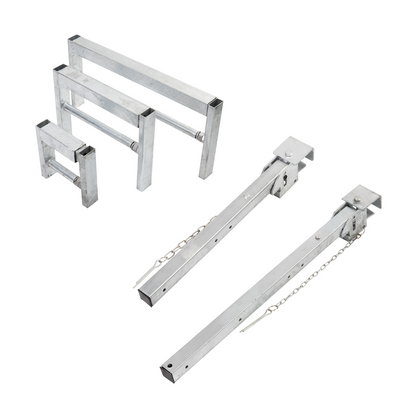

Universal MOBRA Kits

Enhance your chamber installations with our versatile MOBRA (modular) bracket and arm solutions. Designed to accommodate our Joint Closures and termination boxes inside chambers and furniture. MOBRA chamber frames are engineered for reliability and adaptability.

MOBRA Chamber Bracket No-Drill JUF/2 - HSBX-MOBRA-BKT-2 – 088199

  • Suitable within standard joint box/cable chambers.
  • Adjustable from 220mm to 300mm.
  • No drill chamber bracket is used in conjunction with MOBRA arms.
  • Crafted from galvanized steel.
  • BT code 088199

MOBRA Chamber Bracket No-Drill JUF/4-6 - HSBX-MOBRA-BKT-4-6 – 066823

  • Suitable within standard joint box/cable chambers.
  • Adjustable from 410mm to 620mm.
  • No drill chamber bracket is used in conjunction with MOBRA arms.
  • Crafted from galvanized steel.
  • BT code 066823

MOBRA Chamber Bracket No-Drill JUF/10 - HSBX-MOBRA-BKT-10 – 066822

  • Suitable within standard joint box/cable chambers.
  • Adjustable from 660mm to 850mm
  • No drill chamber bracket is used in conjunction with MOBRA arms.
  • Crafted from galvanized steel.
  • BT code 066822

MOBRA Chamber Bracket Pivot Arm Medium for Use With JUF/2 - HSBX-MOBRA-PIV-MED – 066827

  • For use with the MOBRA chamber bracket JUF/2
  • Ensures secure and easy access for engineers during maintenance.
  • Adjustable to align with installer's fixing point requirements.
  • Crafted from galvanized steel.
  • Standing height of 450mm and closed length 630mm
  • BT code 066827

MOBRA Chamber Bracket Pivot Arm Large For Use With JUF/4-6 & JUF/10 - HSBX-MOBRA-PIV-LRG – 066826

  • For use with the MOBRA chamber bracket JUF/4-6 & JUF/10
  • Ensures secure and easy access for engineers during maintenance.
  • Adjustable to align with installer's fixing point requirements.
  • Crafted from galvanized steel.
  • Standing height of 650mm and closed length 820mm
  • BT code 066826

MOBRA Modular Box Conversion Bracket No-Drill For Use With Modular Box - HSBX-MOBRA-BX-CONV – 066825

  • Corner mounting brackets that enable the use of MOBRA no drill brackets in plastic cable chambers.
  • Crafted from galvanized steel.
  • Brackets come as a pair.
  • BT code 066825
Click here for more information and to view the datasheet
