Air Blown Fibre Installation Kit - 240V
Couldn't load pickup availability
The Air Blown Fibre Installation Kit - 240V provides a complete, portable solution for installing air blown fibre into microducts. It includes the blowing tool, 10 bar compressor, tripod, hose, duct clamp and consumables required for efficient on-site deployment.
The lightweight tool uses compressed air and an electric motor to feed fibre smoothly and safely. An adjustable magnetic coupling helps prevent fibre damage, while the trigger control allows easy adjustment of speed and direction.
The front-mounted duct clamp provides a secure fit and supports pre-terminated fibre and mid-blow applications.
Key Features:
- Complete 240V installation kit
- Lightweight and easy to operate
- 10 bar compressor included
- Adjustable speed and direction
- Magnetic coupling helps protect fibre
- Suitable for pre-terminated fibre and mid-blow installations
- Compatible with Hexatronic air blown fibre and microduct systems

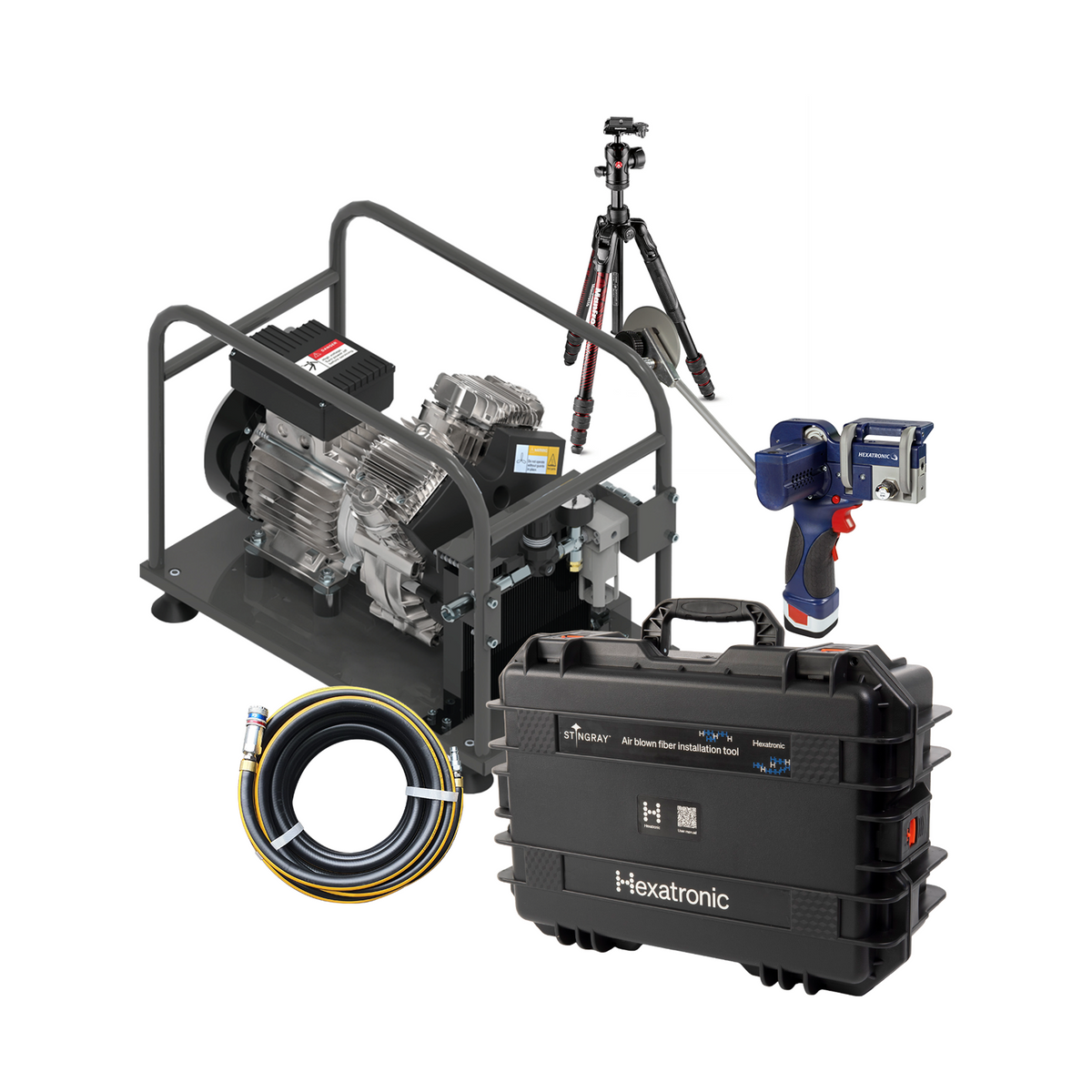

Kit Includes:
- Air Blown Fibre Installation Tool
- 240v 10 Bar Compressor
- Duct Clamp
- Tripod
- Hose
- Carry Case
Performance:
- Typical installation distance: Up to 1,000m
- Typical speed: 80-120m/min
- Maximum speed: Up to 150m/min
