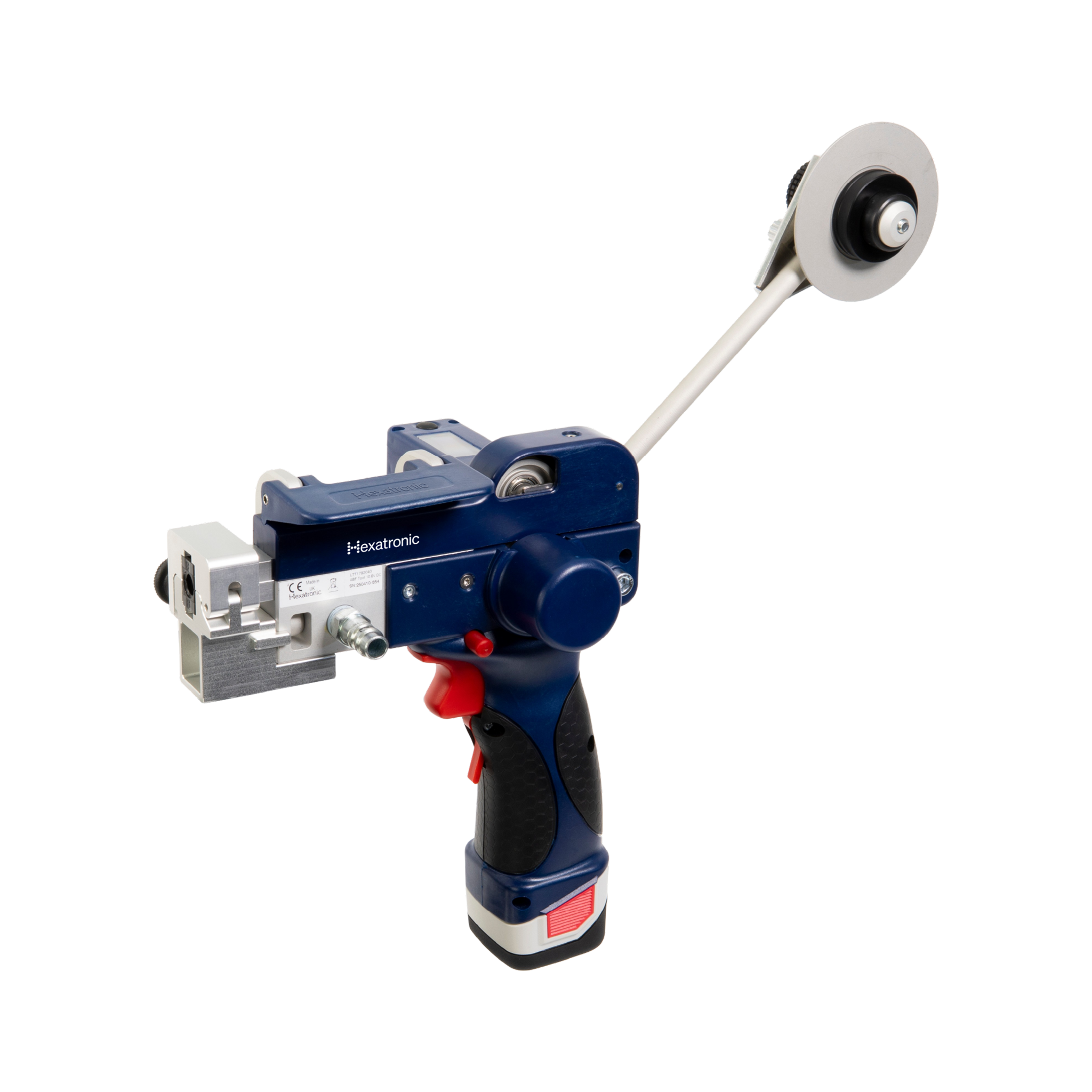

Air Blown Fibre Pro Installation Tool

The Hexatronic Air Blown Fibre Pro Installation Tool is a compact, high-performance solution designed for fast, reliable air-blown fibre installation into microduct systems. Engineered to deliver class-leading performance when used with Hexatronic Stingray Air Blown Fibre, ABF Pro combines motorised fibre feeding with compressed air to achieve long installation distances, even in tight or challenging duct environments.

Ideal for FTTH, business connectivity, campus backbones, and in-building networks, this professional-grade tool supports both bare fibre an pre-terminated reels. Its lightweight, portable design, low noise operation, and virtually calibration-free setup make it perfectly suited for demanding field installations where speed, control, and reliability are essential.

Key Features:

• Installation speeds up to 150 m/min
• Compact, lightweight and portable design
• Class-leading performance with Hexatronic Stingray ABF
• OLED display showing speed, distance, and battery status
• Speed locking function for consistent installations
• Low noise operation
• Easy to use with minimal calibration required
• Snap-in push-pull reel arm for fast setup
• Supports 2-24 fibre units

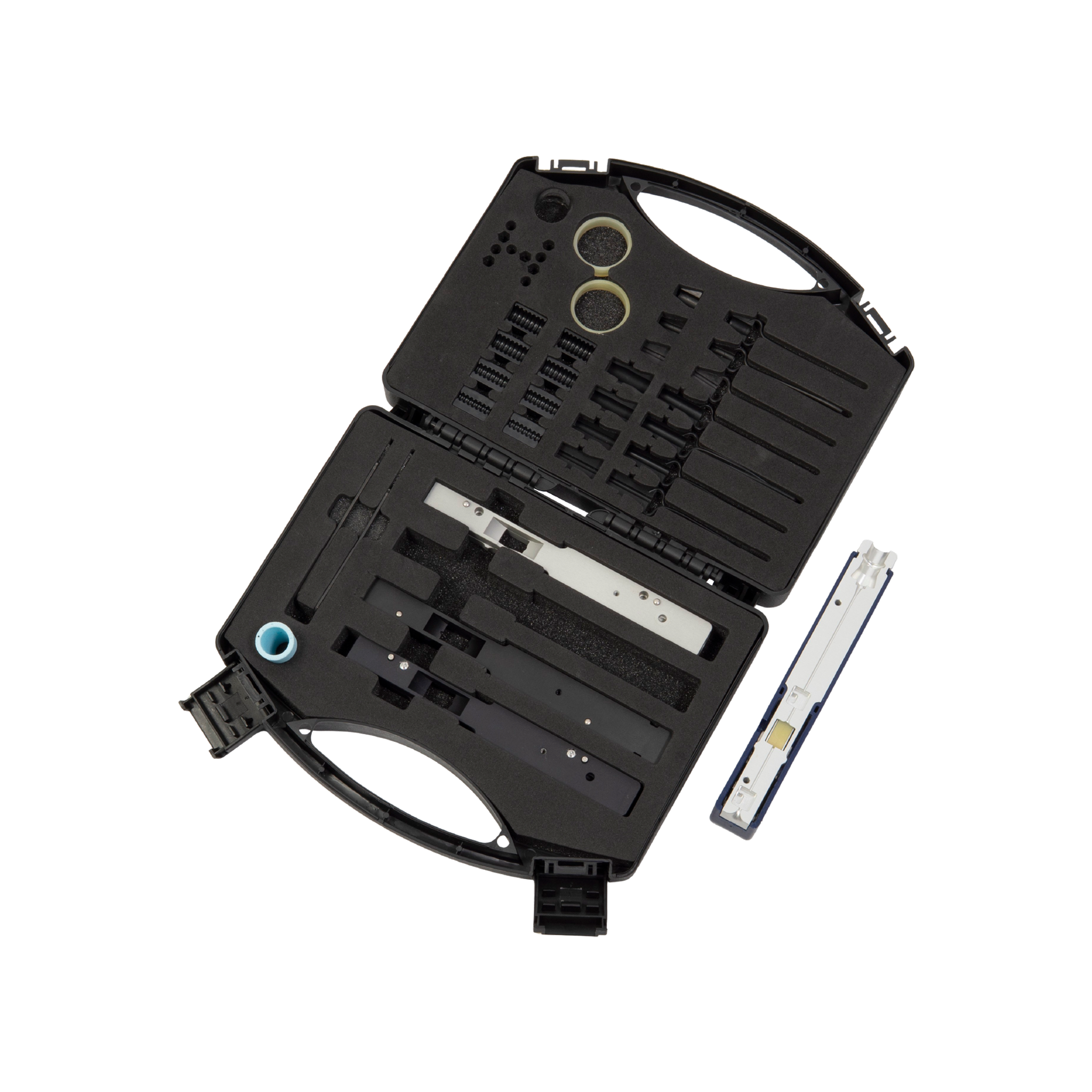

Included Components

• Duct clamp with inserts for 3-8 mm microducts
• Microduct nozzles: 3 mm, 5 mm, 7 mm, 8 mm
• Fibre guides: 1.4 mm, 1.65 mm, 1.8 mm
• Integrated OLED display and battery system

The ABF Pro features a precision magnetic clutch that allows installers to finely control fibre feed force, reducing the risk of fibre damage during installation. The front-mounted duct clamp ensures secure alignment while preventing duct deformation, and the interchangeable nozzles and fibre guides provide maximum flexibility across different cable and duct sizes.

Built for professional installers, the ABF Pro delivers exceptional performance, safety, and durability - making it a dependable choice for modern fibre network deployments.

Click here for more information and to view the datasheet
